4. Listening

Once your box is set up, playing music is the same whatever the source — local files, Qobuz, Tidal, HIGHRESAUDIO, internet radio or a UPnP server all flow through one set of controls.

The Now Playing bar

A sticky Now Playing bar sits above the footer and shows all active audio sources at once, with quick transport — previous, play/pause, next, and volume. Repeat and shuffle are in the fullscreen player — and on a phone, previous too: there the bar gives its room to the title and the artist, a line each.

Opening the fullscreen player. There are three ways in, and tapping the bar itself is not one of them:

On a computer — the small tab at the top-right corner of the bar.
On a phone or tablet — swipe up on the bar, starting from the track title rather than from the buttons, which keep the touch for themselves.
From the Library — it opens by itself as soon as you start something playing.

Tapping the cover art does something else: it opens the album's details — Album, Artist, Year, Genre, Format, Position, Source — and its tracklist.

The Now Playing bar on a phone: cover art, the stream-origin and output badges, the title and the artist on a line each, and the transport — play/pause, next and volume

The fullscreen player

Cover art with a dynamic background derived from it, a seekable progress bar — Live in its place for an internet radio station, which has no end — and full transport: repeat · previous · play/pause · next · shuffle. A button that would do nothing is greyed, never removed: next on the last track, and on a station played alone everything but play/pause — save a repeat or shuffle left on, which you can still turn off.
Album details — Album, Artist, Format, Genre, Year, Position, Source and the full Tracklist.
A Queue view for what's coming up (see below).
Under the cover, a Cover | VU meter switch puts a pair of VU meters in the cover's place — see The level meter.
On a phone held on its side — with Portrait Lock off, see Portrait lock — the whole player fits on one screen, with nothing to scroll.
On a Qobuz or HIGHRESAUDIO track, an Add to playlist button beside the title puts the track into one of your playlists on that service — see 5. Library & streaming.
Swipe between active sources; close with the back button or swipe-down.
When playing to a network renderer, a "Routed to UPnP renderer" indicator makes the destination clear.

Controls tell you the truth. Audiogravi^ty waits for the player's answer before showing a command as done. If the player refuses one, the control returns to its real state rather than showing a change that never happened — a play/pause icon that flips back, or a volume slider that glides back to where it was, means the command was declined, not that your tap was missed. The commonest reason is an output with no volume control of its own. Queue actions say it in words, carrying the player's own reason. Jumping in a track is declined in three cases: a live radio stream has no end to jump to; the first seconds of a Tidal track's first listen, while its seekable copy is still arriving (wait a moment and try again); and a second jump asked for while the first is still being applied. See 9. Troubleshooting.

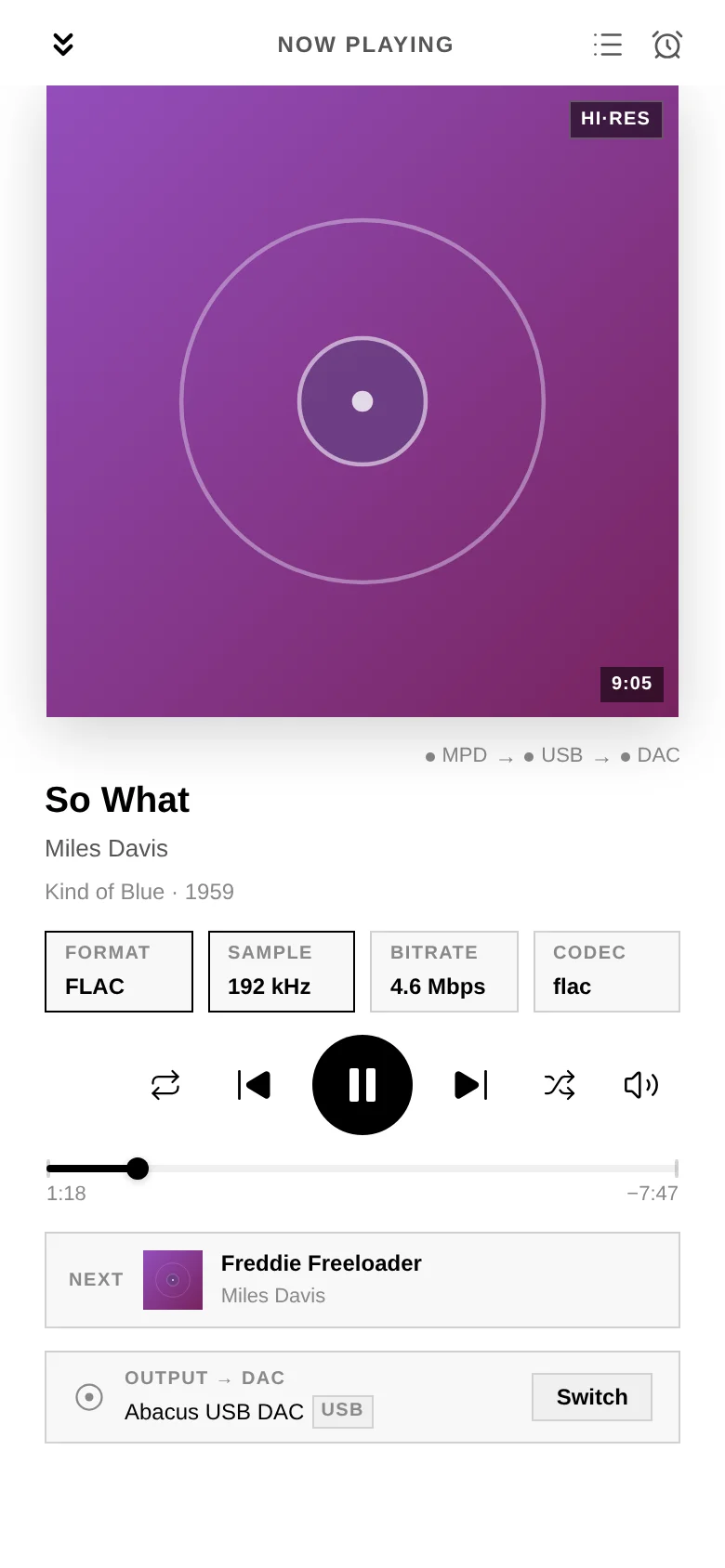

The fullscreen player: cover art, the Cover | VU meter switch, signal path, the track with its add-to-playlist button, hi-fi format strip, transport, next track and output bar

The level meter

Pro. While the box plays with its own player — your library, Qobuz, Tidal, HIGHRESAUDIO or a radio station — the fullscreen player can show a pair of VU meters in the cover's place: one needle per channel, moving with the music as you hear it.

Choose VU meter in the switch under the cover; Cover brings the artwork back. Each phone, tablet or computer keeps its own choice.
The gauge button beside the switch opens the showcase: the meters and the track over the whole screen, for a tablet set beside your hi-fi. The screen stays awake while it is open, on browsers that allow it. Held on its side, a tablet or a phone shows the meters side by side; upright, one above the other. Exit brings the player back.
Reading the meters. The needles swing like those of a studio VU meter. 0 is the reference level; the heavy band from 0 to +3, the loudest passages. The PEAK lamp lights when the music goes past the end of the scale — even for an instant too short for the needle to show.
Music sent to the box from another app — AirPlay, Roon, HQPlayer, or casting to the box as a network speaker — keeps the cover: the meters follow the box's own player only.
Without Pro, the switch shows a padlock that opens the licence panel.

The fullscreen player with the two VU meters, left above right, in the cover's place, the Cover | VU meter switch and the showcase button under them

The showcase on a phone held on its side: the left and right VU meters side by side, the track and its format below, and the Exit button

The Queue

The Queue view shows the current track and what's coming up — for every source, including Qobuz, Tidal and HIGHRESAUDIO albums, with their real titles and artists (they survive a restart of the box, too).

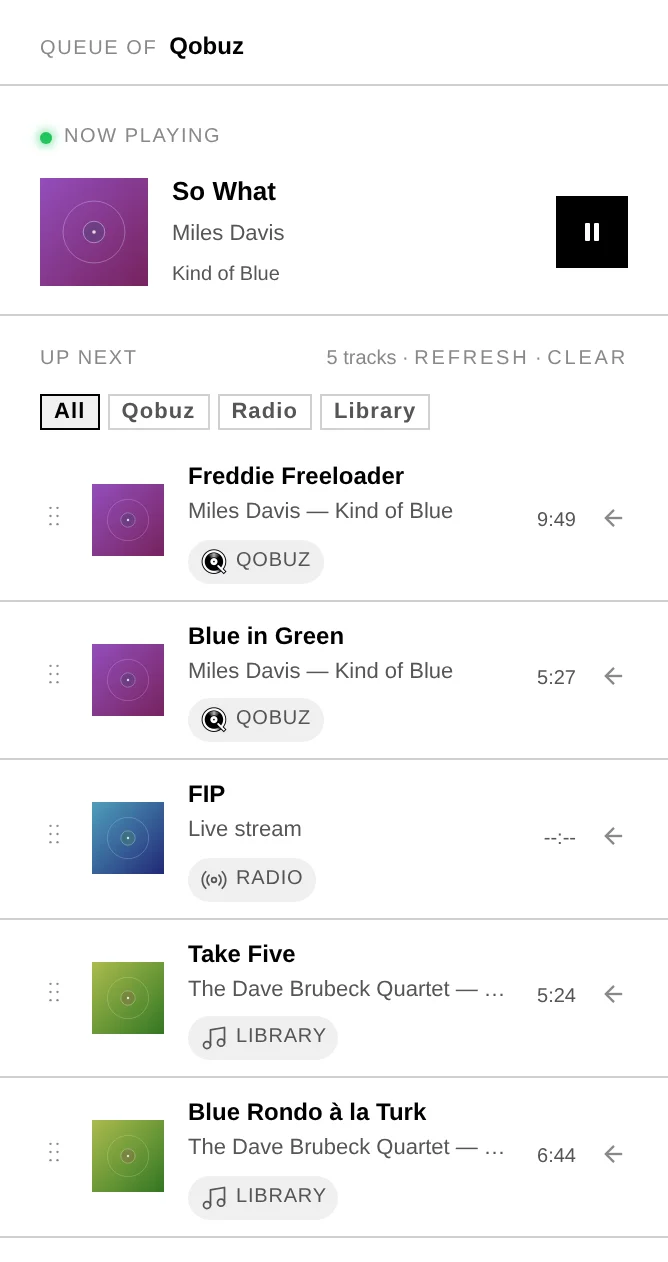

A mixed queue: Qobuz, radio and local-library tracks with per-source badges and the source filter bar

The header names the actual source — playing internet radio reads "Radio" and shows the station's logo. The same holds when you cast to a network speaker: the badge names where the music comes from (Qobuz, Library, your media server's name), and the speaker appears as the output — because it is the destination, not the source.
A badge reading External means the music was started from another app, not from Audiogravi^ty. Your box also behaves as a speaker other apps can send music to, so a phone running JPLAY or BubbleUPnP can start playback without going through it. Music started at HQPlayer's own remote is badged HQPlayer. Either way you still see what is playing, and the badge tells you the queue is not one Audiogravi^ty filled. When you send music to HQPlayer, the badge names the music — your library, Qobuz — not HQPlayer.
When the queue mixes sources — say a radio station followed by a Qobuz album — each upcoming track carries a small source badge telling you where it comes from, and a filter bar lets you view one source at a time. Filtering only changes what you see: nothing moves or stops playing, and the current track always stays in view.
Remove an upcoming track with its Remove button or a left-swipe — the same gesture used across the app's lists. Clear empties the queue, and respects the active filter. A Roon queue is changed from the Roon app: here it has no Remove button or swipe, and Clear is greyed out.
On Starter, a streaming service's track carries a padlock in place of its length: it will be skipped, since the streaming services come with Pro. A tap on the padlock opens the licence panel, and the track can still be removed.

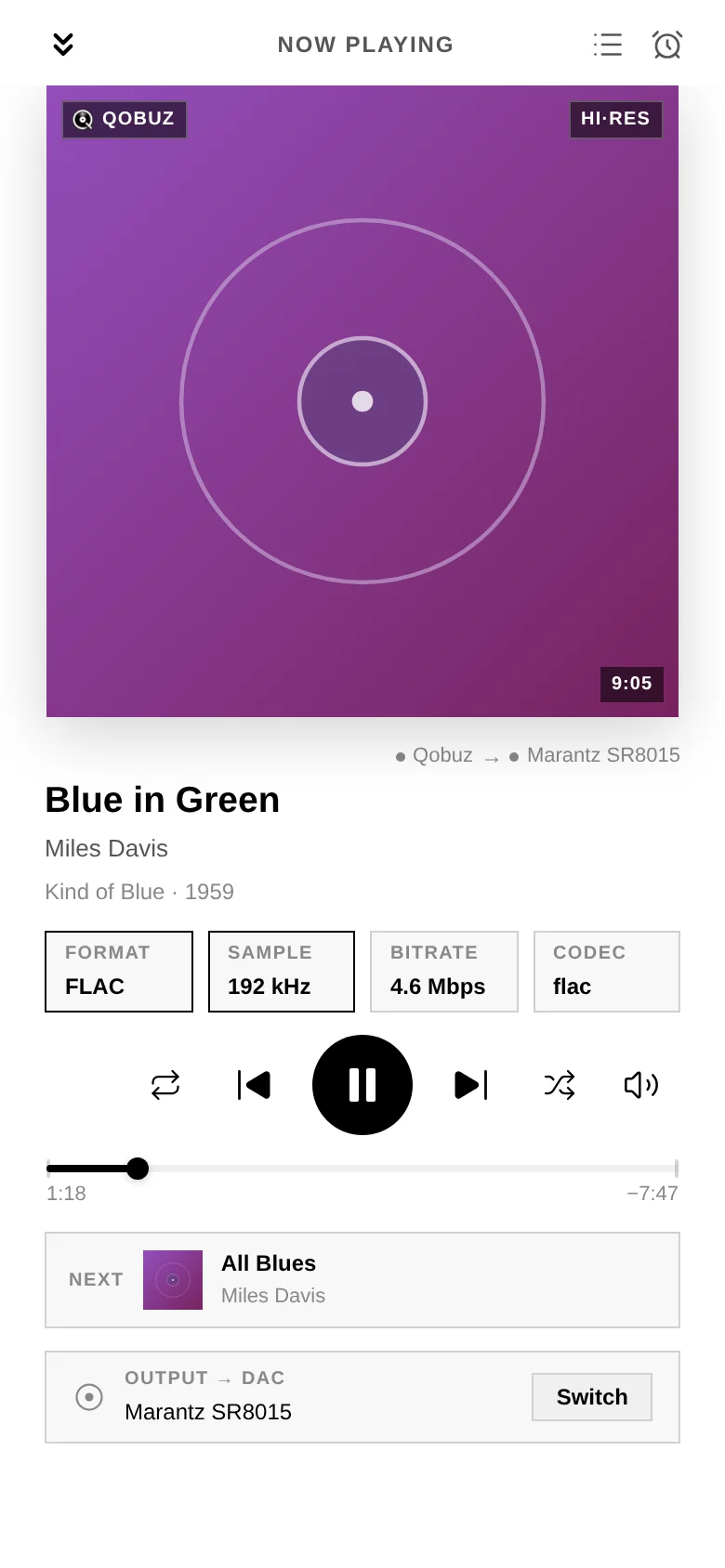

A Qobuz album cast to a network speaker: the cover is badged Qobuz, the signal path reads Qobuz then the speaker's name, and the output bar names the speaker

Casting hands the audio over: what was playing on your DAC stops, and the speaker becomes the output. A network speaker reports no format back: the hi-fi readout shows what Audiogravi^ty knows of the track it sent — codec, sample rate, bit depth, bitrate —, and a dash where it knows nothing.

The live hi-fi readout

On every track change, Audiogravi^ty shows the format of the track playing:

The codec (FLAC, ALAC, MP3, AAC, DSD…), sample rate, bit depth — Lossy for a compressed format such as MP3 or AAC, which has none — and instantaneous bitrate. A cell shows a dash when nothing tells its value.
For a DSD track, a couple of seconds in, how it reaches your DAC when that is not as DSD: DoP, or Converted to PCM — see 6. Outputs & engines → DSD.

This is your at-a-glance confirmation that a Hi-Res track really is playing at its native resolution.

DSD plays at full volume. While a DSD track plays, the volume control gives way to a padlock: the player's volume has no effect on DSD, so keep your listening level on the amplifier. Your DAC's own volume is set to maximum too, and put back when the DSD ends — some DACs play nothing, or noise, otherwise. This happens with the app closed too, and for a DSD track started from another app. To leave the volume of a DAC that lowers DSD properly as you set it, see 6. Outputs & engines → DSD. Through HQPlayer, or on a network speaker, the volume stays yours to set.

On a box whose DAC does not take DSD — a HAT on a Raspberry Pi, for instance — the volume control stays too, and works on DSD tracks as on any other: the DSD is converted to PCM before the volume, and the player says Converted to PCM.

The stream-origin badge

A badge in the player always tells you where the audio is coming from — Tidal, Qobuz, HIGHRESAUDIO, your UPnP server (by name), a radio station (by name), a local file, or AirPlay. You see it in the Now Playing bar, on the full-screen player and on the Pipeline tab's Now Playing card. No guessing which source is live.

The transport pill on the left names the engine carrying the audio — here MPD. On its own it would tell you nothing about the music: MPD plays local files, Qobuz, Tidal, HIGHRESAUDIO and radio alike. The badge beside it names the origin, and for a radio station or a UPnP server it gives the name of the station or the server.

Profiles — switch whole chains in one tap

A profile is a ready-made scenario for your audio system, named after what it runs. Switching one automatically starts the services it needs and stops the conflicting ones, so the chain is always coherent. For example: Roon Bridge + HQPlayer NAA for serious listening, UPnP Renderer to expose the box as a UPnP renderer, MPD for your own music library. The profiles come with Audiogravi^ty (see 7. Administration).

Each profile tile shows the services it starts/stops, the output they are set to play to (e.g. usb, toslink), a live health bar of those services — running, stopped in grey, failed in red — and when it was last switched on since Audiogravi^ty last started. Every switch asks for confirmation. The services to stop are stopped first, then the others started. If an essential service cannot be stopped, nothing is started; any other failure is named in a message, and the switch is not undone.

If a service of the profile in use fails, its tile reads FAILED in red; tap Activate on it to start again what failed. The other profiles keep their state, with a small failed badge counting it.

ALL / ACTIVE / IDLE filters the tiles, the active profile first. Click a profile's name for the full list of its services and the switches made from this browser; the HISTORY panel beside the tiles lists those switches for every profile.

Sleep timer

A built-in sleep timer pauses playback after a set duration — for falling asleep to music without leaving the system running all night.

Portrait lock

On phones and tablets, Audiogravi^ty stays in portrait by default. A Portrait Lock switch in Settings (the gear in the top bar) turns it off if you prefer landscape — and on a device you can't rotate, the Continue in landscape button on the rotate screen lets you carry on (it switches the lock off for you). On a computer there is nothing to lock: the setting has no effect there, and the interface follows your window whatever its shape.

Where the audio goes

The output line at the bottom of the fullscreen player always names your destination — your DAC or the speaker you selected — even when nothing is playing, and marks it Stopped when it sits idle or Unreachable when it cannot be contacted. Any reason the sound is not coming out appears on that same line.

Choosing where music plays — your local DAC, a network renderer or HQPlayer — is covered in 6. Outputs & engines, and so is receiving AirPlay. Connecting streaming services and browsing your library is in 5. Library & streaming.
